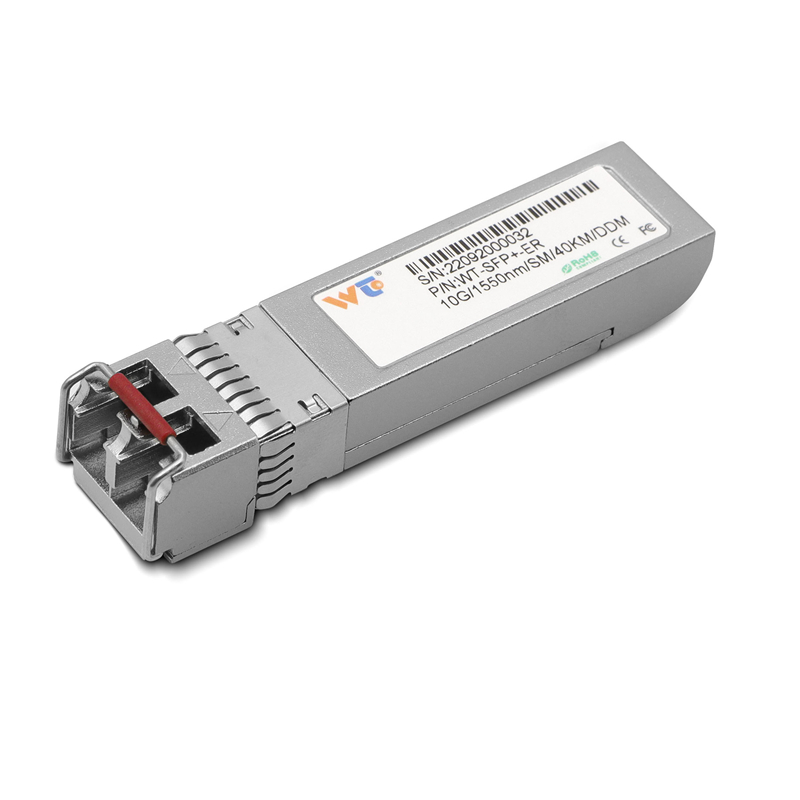

Comparing compact layouts and distribution strategies clarifies why some outdoor networks run short on power while others maintain steady uptime. When you stack SFP+ uplinks, midspan injectors, and port-level power controls into a single 8‑port smart industrial PoE switch, you gain both agility and predictability—especially when the uplink uses a 10g sfp+ transceiver for aggregation. The right mix of switch features and transceiver choices—think budgeted PoE per port and an appropriate 10g ethernet transceiver on the uplink—turns a fragile distributed edge into a resilient node.
Where power budgets typically fail: a comparative snapshot
Small outdoor sites usually use one of three approaches: larger centralized PoE backplanes, local smaller PoE switches, or passive midspans. Comparing them highlights common pitfalls. Centralized solutions can provide more aggregate watts but introduce single points of failure. Local 8‑port PoE switches reduce cabling and isolation risk but must manage per‑port limits and thermal constraints. Passive midspans add cost and complexity without the granular control that smart switches provide. Use the comparison to choose the model that fits the site’s power density and environmental needs.
Design rules that work for 8‑port smart industrial PoE layouts
Start with a clear power‑budget worksheet: list each PD (powered device), its maximum draw, and its expected duty cycle. Reserve a headroom factor—typically 20–30%—to handle inrush and seasonal temperature effects. Prefer switches that show per‑port current sensing and scheduling. Where possible, place the SFP+ uplink on a dedicated fabric lane so that data aggregation never competes with PoE management for CPU cycles. Include {main_keyword} and {variation_keyword} in the layout checklist so physical provisioning and inventory match the logical draw.
Practical trade-offs: heat, cabling, and redundancy
Eight ports may seem modest, but outdoor enclosures constrain airflow. Higher PoE classes raise internal temperatures quickly, which reduces available power. Choosing a slightly larger enclosure or adding passive heat paths often beats throttling ports mid-season. Redundancy choices matter too: N+1 power supplies or dual 48 VDC feeds keep devices online when one source dips. Use SFP+ for uplinks to maintain low latency and to simplify future upgrades to 10 Gbps aggregation without redoing copper runs.
Common mistakes and effective alternatives
Operators often oversubscribe per‑port wattage based on nameplate values rather than measured duty cycles. That leads to unexpected brownouts. A better pattern: measure real draw over 24–72 hours and size the PSE accordingly. Another mistake is ignoring firmware features—per‑port scheduling, PoE prioritization, and power fencing can prevent a single camera or radio from pulling down the site. If tight power is unavoidable, consider mixing active PoE ports with passive non‑PoE ports and offloading the heaviest PDs to a local midspan backed by solar or a battery buffer.
Also—document each physical port and its assigned PD; it’s the single best prevention against configuration drift.
Benchmarks and a real-world anchor
In practice, aggregation with 10 Gbps SFP+ uplinks is widely used in campus and metro edge deployments to avoid backhaul saturation; operators report meaningful headroom when uplink capacity rises from 1 Gbps to 10 Gbps. Typical SFP+ modules consume roughly 1–3 W and leave the PoE budget focused on edge devices rather than on link electronics. Use measured values to validate your design rather than relying solely on datasheet maxima.
Advisory: three golden rules for selecting the right strategy
1) Prioritize observability: choose switches that expose real‑time per‑port power, temperature, and historical draw. Those metrics shorten troubleshooting cycles and prevent surprises.
2) Design with headroom and control: size for 20–30% headroom and require per‑port scheduling, prioritization, and power fencing so critical PDs remain powered under stress.
3) Match uplink capability to growth: use SFP+ uplinks for 10 Gbps aggregation now to avoid disruptive upgrades later; it also keeps latency low and simplifies transceiver inventory management.
These rules reduce downtime, make maintenance predictable, and let teams focus on service instead of firefighting. WINTOP provides transceiver and switch options that map directly to these requirements—proven parts, clear specs, and inventory you can count on. —
